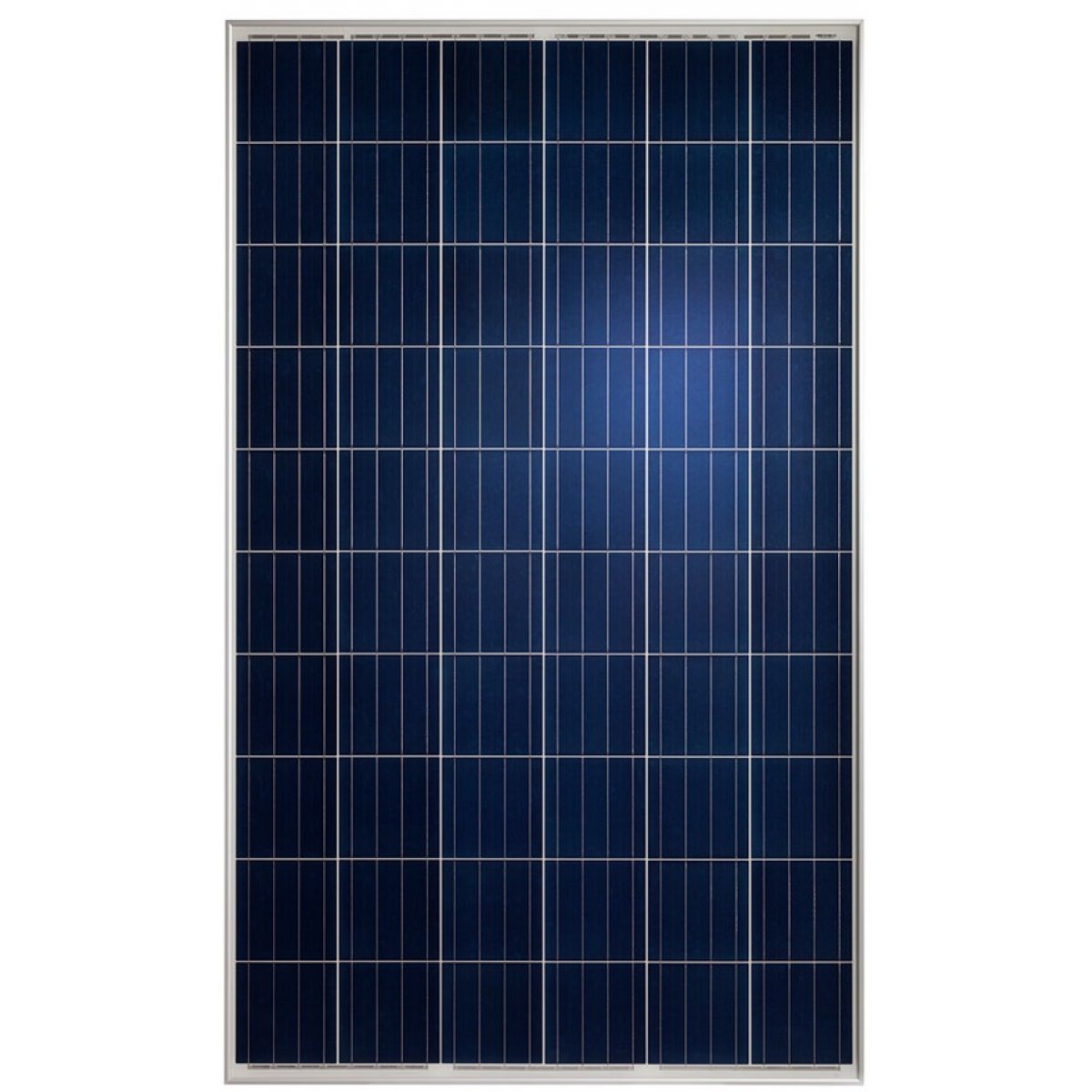

PVE-P6-230 Solar Panel
Svensktillverkad solpanel, PVE-P6-230 Solar Panel from PV Enterprise Sweden AB
| Electrical Characteristics | |
|---|---|
| STC Power Rating Pmp (W) | 230 |
| Open Circuit Voltage Voc (V) | 37.2 |
| Short Circuit Current Isc (A) | 8.31 |
| Voltage at Maximim Power Vmp (V) | 29.3 |
| Current at Maximim Power Imp (A) | 7.84 |
| Panel Efficiency | 14.1% |
| Fill Factor | 74.5% |
| Power Tolerance | -3.00% ~ 3.00% |
| Maximum System Voltage Vmax (V) | 1000 |
| Maximum Series Fuse Rating (A) | 15 |
| Temperature Coefficients | |
| Temperature Coefficiency of Isc | 0.036 %/ºC |
| Temperature Coefficiency of Voc | -0.33 %/ºC |
| Temperature Coefficiency of Pmp | -0.47 %/ºC |
| Mechanical Characteristics | |
| Cell Type | Polycrystalline Cell |
| Cell Size(mm) | 156 × 156 |
| Cells | 6 × 10 |
| Dimensions | 1650.0 × 991.0 × 46.0mm (39.0 × 65.0 × 1.8 inch) |
| Weight | 19.5Kg (43.0 lbs) |
| Junction Box (Safety Rating, Bypass Diodes) | 3 Bypass diodes |
| Positive Cable (Length, Cable Cross-Section) | |
| Negative Cable (Length, Cable Cross-Section) | |
| Plug Connector (Type, Safety) | |
| Front Cover (Thickness,Material) | |
| Backsheet Cover (Color, Thickness, Material) | |
| Encapsulation Materials | |
| Frame Material | |
| Operation Conditions | |
| Nominal Operating Cell Temperature (NOCT) | 47.0ºC |
| Operating Temperature | -40.0ºC to 85.0ºC |
| Maximum Load | 2400 |
| Hail Storm Rating | |
| Fire Safety Rating | |
| Warranty & Certification | |
| Certificates |
|
| Defects & Workmanship Warranty Period | 5.0 Years |
| 90% Power Output Warranty Period | 10.0 Years |
| 80% Power Output Warranty Period | 25.0 Years |
| Are Warranties Insured By Third Party | False |
