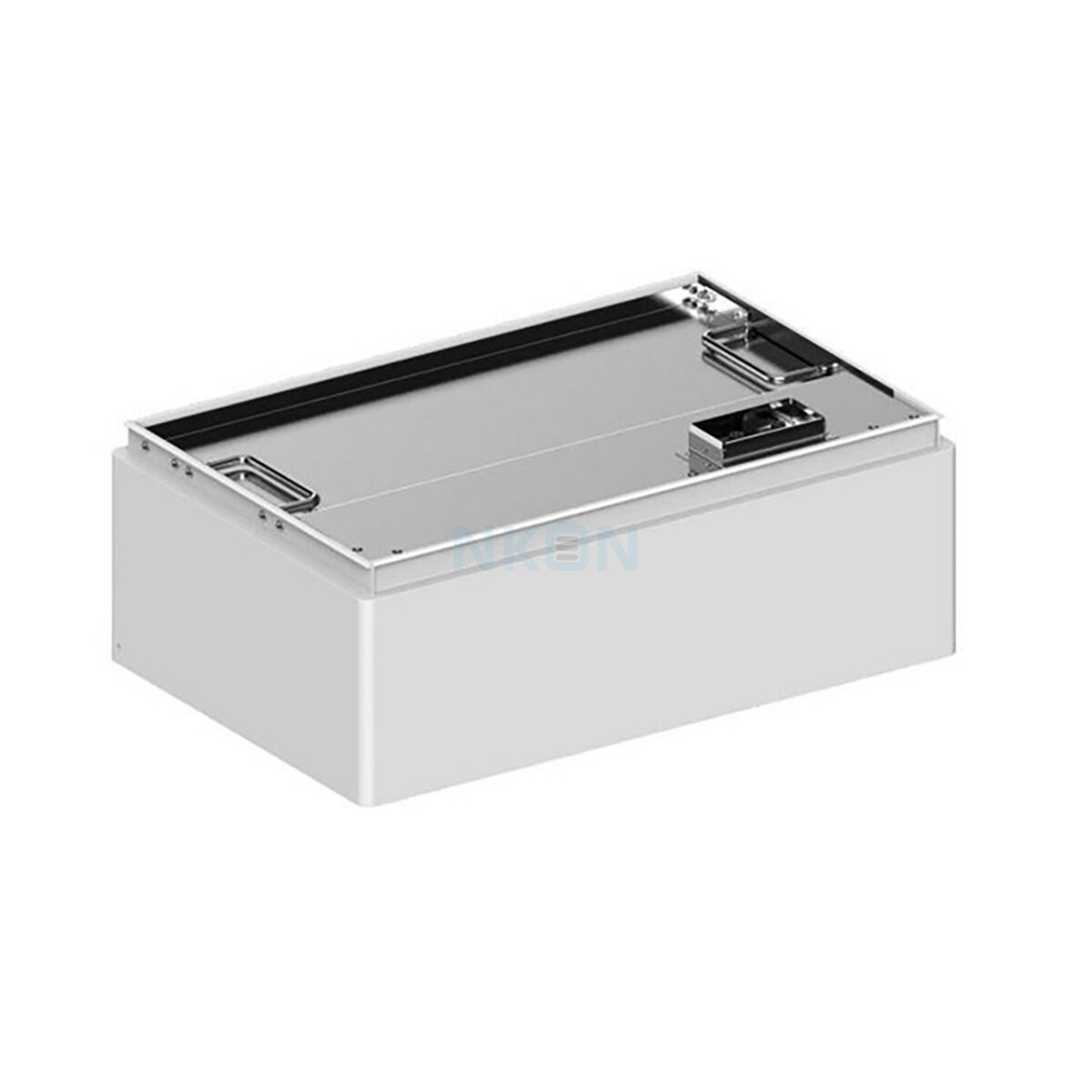

Pylontech H3 batterimodul

he Pylontech Force H3 is the latest version of Pylontech’s high-voltage battery storage system. This innovative design allows for easy connections, saving installers time. The Force H3 is ideal for large residential and small commercial applications, offering flexible configurations from 204.8V to 716.8V and a capacity ranging from 10.2kWh to 35.8kWh.

• Flexible module design
• Reliable performance
• 95% DoD with more usable capacity
• IP 55 protection class
• Weight: 39 kg
• Nominal energy: 5.12 kWh

Chemistry: LiFePO4

Capacity (Wh): 5120

Model: FH10050

Capacity (Ah): 50

Discharge Current: 50

Voltage: 102.4V

Additional Features: CAN

To complete the home battery system, you need at least 2 batteries and the Pylontech Force H3 BMS / BDU (see datasheet).
